Reporting volumes of solids

Task: Report volume of a solid

1. Click Reset graphics .
2. Open mod12.dtm in Graphics.
3. Choose Solids > Solids tools > Report volume of solids.

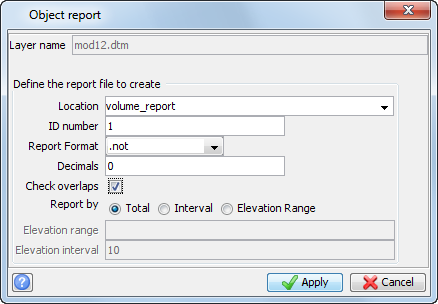

4. Enter the information as shown, and click Apply.



The file volume_report1.not is displayed.



5. Close the report file.

Note: To see all of the steps performed in this task, run _11_solids_volume_report.tcl. You need to click Apply on any forms presented.
